Image MATCH 2D

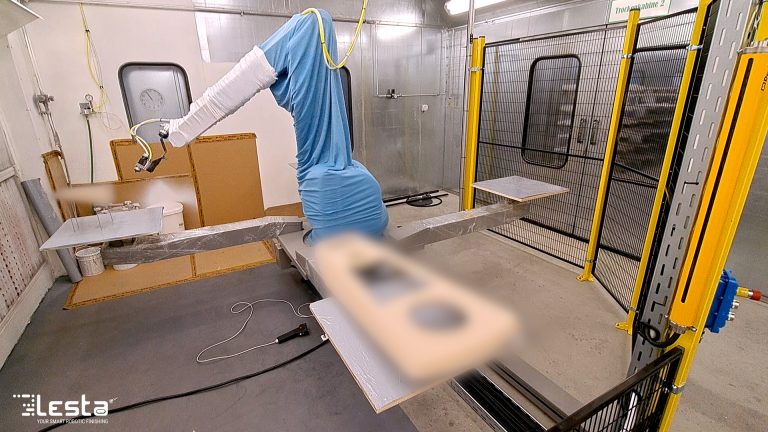

Image MATCH 2D is a system composed of a dedicated software and a pair of photoelectric barriers. It is used on a line, and can identify 2D surfaces.

Image MATCH 2D creates the painting path independently and associates it with a recipe that can be set by an operator. The recipe is based on a series of spraying parameters.

During an initial work phase, recipes are created for each piece, once that’s completed, the only thing left to do is to load the conveyor with the pieces needing to be painted.

Image MATCH 2D recognises the parts, associating them with the corresponding recipe and creates the best painting path.
